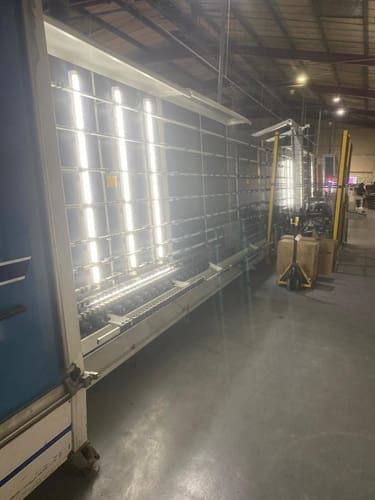

SUPER SPACER FOREL IG Line 2.000 × 4.500 mm

SUPER SPACER FOREL IG Line 2.000 × 4.500 mm
Left-Right Direction

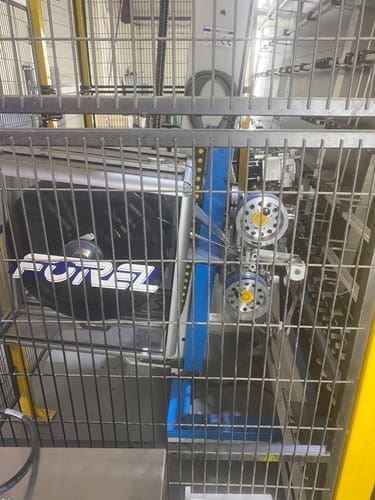

AUTOMATIC FLEXIBLE SPACER APPLICATOR+Sealing Robot

BRAND: FOREL
MAXIMUM SIZE:2.000×4.500 mm
CY: 2006

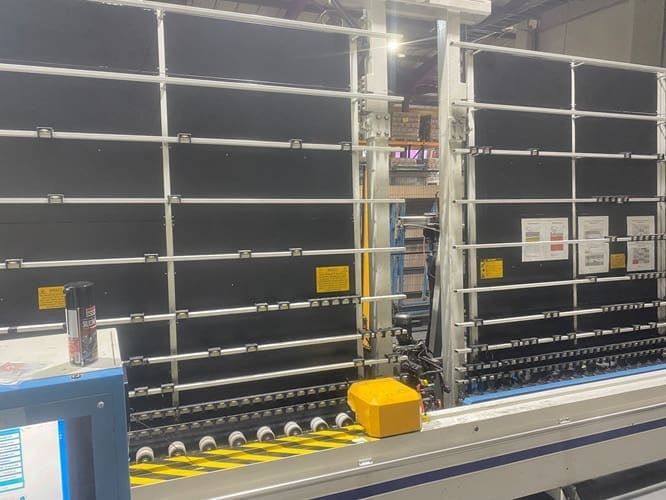

SEALING ROBOT CY: 2006

Can produce triples
Can do shaped units
Maximum IGU thickness:50mm
Flexible Spacer (Warm Edge)
Sealing robot used Bostik 5000 hot melt/Butyl
Type of spacer profile: H=5 mm (H=3/16”) and/or H=6,5 mm (H=1/4”)

Composed of:
SAHM 20A1
→ Auxiliary/Handling Module (Infeed or Transfer)
2200-A6
→ Transport/Intermediate Positioning Module
TSS 200 A0
→ Automatic Flexible Profile Applicator (Warm Edge)

→ Technological Core of the Line

Estimated technical capabilities (consistent with Forel 2006)

Maximum format: approx. 2,000 × 4,500 mm
Maximum IGU thickness: ~ 50 mm

Production:
Double glazing ✔
Triple IGU ✔

Shapes:
Rectangular ✔
Shaped units ✔

Technology:
Flexible Spacer / Warm Edge (Super Spacer)
Fully automated line
